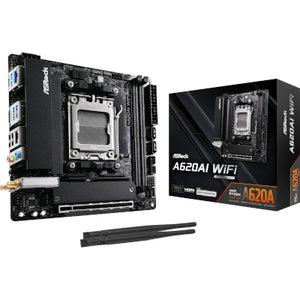

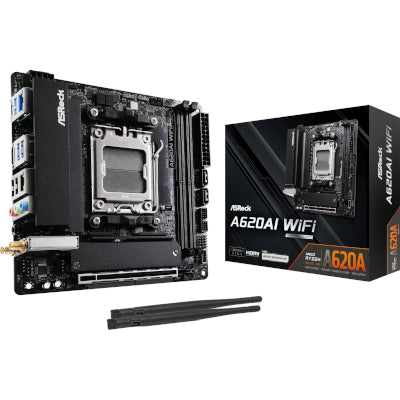

The ASRock A620AI WIFI is based on the AMD A620 chipset and supports AMD processors for the AM5 socket. It features two DDR5 slots for up to 128 GB of memory. Additional features of the ASRock A620AI WIFI include a PCIe 4.0 x16 slot. The ASRock A620AI WIFI also offers 8-channel sound, a 2.5 Gigabit LAN interface, two SATA3 ports, two M.2 slots, Wi-Fi 6E, Bluetooth 5.2, and a range of USB interfaces.

Type    Motherboard
EAN    4710483942747
Manufacturer No.    90-MXBT50-A0UAYZ
Socket    AM5
Max. supported CPUs    1
Operating System    Support    Windows 10 ready, Windows 11 ready
Processor    Supported Models    Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 7xxxX3D (Raphael), Ryzen 5 8xxxF (Phoenix), Ryzen 5 8xxxG (Phoenix), Ryzen 5 9xxxX (Granite Ridge), Ryzen 5 9xxxF (Granite Ridge), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7 8xxxG (Phoenix), Ryzen 7 8xxxF (Phoenix), Ryzen 7 9xxxX (Granite Ridge), Ryzen 7 9xxxX3D (Granite Ridge), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael), Ryzen 9 9xxxX (Granite Ridge), Ryzen 9 9xxxX3D (Granite Ridge)
Chipset    AMD A620
Slots    PCIe x16    1x (of which: 1x PCIe x16)
BIOS    256Mb AMI UEFI
Form Factor    Mini-ITX
Usage    PC
Power Supply    ATX12V (24-Pin + 8-Pin)
Memory    Maximum    128 GB
    Number of Slots    2x DDR5
    Supported Standards    DDR5-4800, 5200, 5600, 6000, 8200+
    Channels    2
    Maximum Memory Ranks    4
Ports (external)    USB-C 3.2 Gen 2 (10 Gbit/s)    1
    USB-A 3.2 Gen 2 (10 Gbit/s)    2
    Note:    The designation USB 3.2 Gen 1 corresponds to the earlier designations USB 3.1 Gen 1 or USB 3.0.
    USB-A 2.0    2
    HDMI    1
    Microphone    1
    Line-In    1
    Line-Out    1
    Bluetooth    Yes
    Wi-Fi    Yes
Ports (internal)    SATA    2
    M.2    2
    M.2 Module Key    M
    M.2 Slot 1    PCIe Gen 4.0
    M.2 Slot 2    PCIe Gen 3.0
    Note:    The actual usable speed of your M.2 SSDs depends on the combination of CPU, motherboard slot, and chipset.
    M.2 WLAN    1
    M.2 Interface    PCIe
    M.2 Length    80 - 80 mm
    RGB LED Header    1
    Addressable RGB LED Header    3
    4-pin PWM Fan    3
Ports (optional)    USB 3.2 Gen 1 (5 Gbit/s)    2
    USB-C 3.2 Gen 1 (5 Gbit/s)    1
    USB 2.0    2
    TPM    Yes
RGB Standard    RGB LED
SATA Controller    AMD A620
Directly usable RAID levels    0, 1, 10
USB Controller    AMD A620
Onboard Graphics    The graphics ports of the motherboard can only be used with a CPU that has an integrated graphics chip.
Sound    Realtek ALC897
LAN    Dragon RTL8125BG
    Wi-Fi 6E, Bluetooth 5.2
Features    To support the latest processor cores, a BIOS update may be required.
Dimensions    Width: 170 mm x Height: 170 mm
WEEE Number 54978142
