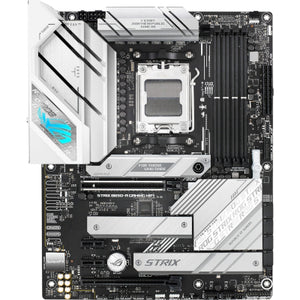

The ASUS ROG STRIX B650-A GAMING WIFI is based on the AMD B650 chipset and supports AMD processors for the AM5 socket. It features four DDR5 slots for up to 192 GB of RAM. Additional features of the ASUS ROG STRIX B650-A GAMING WIFI include a PCIe 4.0 x16 slot, a PCIe 4.0 x16 (x4 lanes) slot, and two PCIe 4.0 x1 slots. Furthermore, the ASUS ROG STRIX B650-A GAMING WIFI has 8-channel sound, a 2.5 Gigabit LAN interface, WiFi 6, Bluetooth 5.2, four SATA3 ports, two M.2 slots, and a range of USB interfaces.

Type Motherboard

color silver

EAN 4711081917762

manufacturer number 90MB1BP0-M0EAY0

Plinth AM5

Max. supported CPUs 1

operating system support Windows 10 ready, Windows 11 ready

processor Supported models Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 8xxxG (Phoenix), Ryzen 5 9xxxX (Granite Ridge), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7 8xxxG (Phoenix), Ryzen 7 8xxxF (Phoenix), Ryzen 7 9xxxX (Granite Ridge), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael), Ryzen 9 9xxxX (Granite Ridge)

Chipset AMD B650

Slots PCIe x16 2x (of which: 1x PCIe x16, 1x PCIe x4)

PCIe x1 2

BIOS 256 MB Flash ROM, UEFI AMI BIOS

EFI-BIOS Yes

Form factor ATX

Usage PC

Power supply ATX12V (24-Pin + 8-Pin + 4-Pin)

Memory maximum 192 GB

Number of sockets 4x DDR5

supported standards DDR5-7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800

Channels 2

Maximum memory ranks 8

ECC is supported Yes

Maximum Data Density 8192 Mbit

Ports (external) Keyboard (PS/2) 1

USB-C 3.2 Gen 2 (10 Gbit/s) 1

USB-A 3.2 Gen 2 (10 Gbit/s) 3

Note: The designation USB 3.2 Gen 2 corresponds to the earlier designations USB 3.1 Gen 2 and USB 3.1.

USB-A 2.0 4

VGA 1

HDMI 1

DisplayPort-Out 1

Microphone 1

Line-In 1

Line-Out 1

RJ-45 1

Bluetooth Yes

WLAN Yes

Connections (internal) SATA 4

M.2 3

M.2 module key M

M.2 interface PCIe

M.2 length 42 - 110 mm

RGB LED Header 1

addressable RGB LED Header 3

USB-C 3.2 Gen 1 (5 Gbit/s) 1

4-pin PWM fan 5

Connections (optional) USB 3.2 Gen 1 (5 Gbit/s) 2

USB 2.0 4

Serial 1

RGB Standard AURA Sync

SATA controller AMD B650

directly usable RAID levels 0, 1, 10

USB controller AMD B650

Onboard graphics The graphics ports of the motherboard can only be used with a CPU that has an integrated graphics chip.

Sound Realtek HD Audio

LAN Intel 2.5Gb Ethernet

Wi-Fi 6E + Bluetooth 5.2

More information To support the latest processor cores, a BIOS update may be required.

dimensions Width: 244 mm x Height: 50 mm x Depth/Length: 305 mm

weight 1.2 kg
