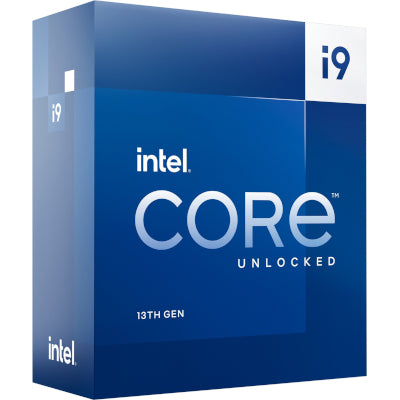

The Intel® Core™ Desktop Processors of the 13th Generation named Raptor Lake bring a new chip layout with various CPU cores for different application scenarios. The Performance Cores provide power for compute-intensive applications, while the Efficiency Cores ensure energy efficiency under low load. The Raptor Lake processors support PCIe Gen 5.0 and 4.0, DDR5 and DDR4. The processor is compatible with motherboards based on the Intel® 700 and 600 chipset.

Type Desktop

EAN 5032037258623

Manufacturer No. BX8071513900KF

CPU Type Core i9

Socket 1700

Max. supported PCIe version 5.0

Core Designation Core i9 13xxxKF (Raptor Lake)

Number 24 Cores

Threads 32

Core Type 1 Performance, 8 Cores, 16 Threads

Clock Frequency Base Clock 3,000 MHz, Boost Clock 5,800 MHz

Core Type 2 Efficiency, 16 Cores, 16 Threads

Clock Frequency Base Clock 2,200 MHz

AI Core Unlocked Yes

Microarchitecture Raptor Lake

Cache Level 2: 32,768 KB, Level 3: 36,864 KB

Fan No fan included

Memory Controller Channels 2

Supported Standards up to DDR4-2133, DDR4-2400, DDR4-2666, DDR4-2800, DDR4-2933, DDR4-3000, DDR4-3200, DDR5-4800, DDR5-5600

Graphics GPU without CPU Graphics

Power Consumption (TDP) 125 Watts

Max. Power Consumption (TDP) 253 Watts

Note Boxed Version
