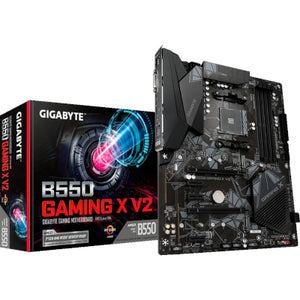

GIGA B550 GAMING X V2 AM4 B550/DDR4/ATX

The GIGABYTE B550 GAMING X V2 is based on the AMD B550 chipset and supports AMD processors for the AM4 socket. It features four DDR4 slots for up to 128 GB of RAM. Additional features of the GIGABYTE B550 GAMING X V2 include two PCIe 4.0 x16 slots and three PCIe 3.0 x1 slots. Furthermore, the GIGABYTE B550 GAMING X V2 has 8-channel sound, a Gigabit LAN interface, four SATA3 ports, two M.2 slots, and a range of USB interfaces.



Type Motherboard

Color black

EAN 4719331810702

Manufacturer No. B550 GAMING X V2

Plinth AM4

Max. supported CPUs 1

Operating System support Windows 10 ready, Windows 11 ready

Processor Supported models [Ryzen 3 3xxx (Matisse), Ryzen 3 3xxxX (Matisse), Ryzen 3 4xxx (Vermeer), Ryzen 3 PRO 4xxxG (Renoir), Ryzen 5 3xxx (Matisse), Ryzen 5 3xxxX (Matisse), Ryzen 5 3xxxXT (Matisse), Ryzen 5 4xxx (Renoir), Ryzen 5 PRO 4xxxG (Renoir), Ryzen 5 PRO 4xxxGE (Renoir), Ryzen 7 3xxx (Matisse), Ryzen 7 3xxxX (Matisse), Ryzen 7 3xxxXT (Matisse), Ryzen 7 PRO 4xxxG (Renoir), Ryzen 7 PRO 4xxxGE (Renoir), Ryzen 9 3xxxX (Matisse), Ryzen 9 3xxxXT (Matisse), Ryzen 5 5xxx (Vermeer), Ryzen 5 5xxxX (Vermeer), Ryzen 5 5xxx (Cezanne), Ryzen 5 5xxxG (Cezanne), Ryzen 7 5xxx (Cezanne), Ryzen 7 5xxxX (Vermeer), Ryzen 7 5xxxXT (Vermeer), Ryzen 7 5xxxG (Cezanne), Ryzen 9 5xxxX (Vermeer), Ryzen 9 5xxxXT (Vermeer)] AMD AM4 processors of the 4th (Zen 3) 3rd generation (Zen 2). NOT compatible with Ryzen 3 3200G and Ryzen 5 3400G.

Chipset AMD B550

Slots PCIe x16 2x (of which: 1x PCIe x16, 1x PCIe x2)

PCIe x1 3

BIOS 256 Mbit flash AMI UEFI BIOS

Form factor ATX

Usage PC

power supply ATX12V (24-Pin + 8-Pin)

Memory maximum 128 GB

Number of sockets 4x DDR4

supported memory type SDRAM-DDR4

supported standards DDR4-4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133

Channels 2

Maximum memory ranks 8

ECC is supported Yes

Memory controller in CPU Yes

Maximum Data Density 8192 Mbit

Ports (external) Mouse/Keyboard Combo (PS/2) 1

USB-A 3.2 Gen 2 (10 Gbit/s) 1

USB-A 3.2 Gen 1 (5 Gbit/s) 3

Note: The designation USB 3.2 Gen 1 corresponds to the earlier designations USB 3.1 Gen 1 and USB 3.0.

The designation USB 3.2 Gen 2 corresponds to the earlier designations USB 3.1 Gen 2 or USB 3.1.

USB-A 2.0 2

DVI-D 1

HDMI 1

Microphone 1

Line-In 1

Line-Out 1

RJ-45 1

Connections (internal) SATA 4

M.2 2

M.2 module key M

M.2 interface SATA, PCIe

M.2 length 42 - 110 mm

RGB LED Header 2

addressable RGB LED Header 2

USB-C 3.2 Gen 1 (5 Gbit/s) 1

4-pin PWM fan 5

Connections (optional) USB 3.2 Gen 1 (5 Gbit/s) 2

USB 2.0 4

TPM Yes

RGB Standard RGB Fusion

SATA controller AMD B550

directly usable RAID levels 0, 1, 10

USB controller AMD B550

Onboard graphics The graphics ports of the motherboard can only be used with a CPU that has an integrated graphics chip.

Sound Realtek ALC887

LAN Realtek GbE LAN

Features CrossFireX

More information To support the latest processor cores, a BIOS update may be required.

Weight 1.5 kg

WEEE number 54978142
